Note: The actual color of the physical parts is GREY. The colors in the pictures are to make the items more visible in the listing photos. Scroll to the bottom to see how these are also compatible with the XTool S1 / F1 ULTRA. When using with metal materials on the high power F1 ULTRA - use at your own risk. A lot of heat can be generated with the high power F1 ULTRA when deep engraving or embossing metal materials and there is a risk of melting the fixtures.

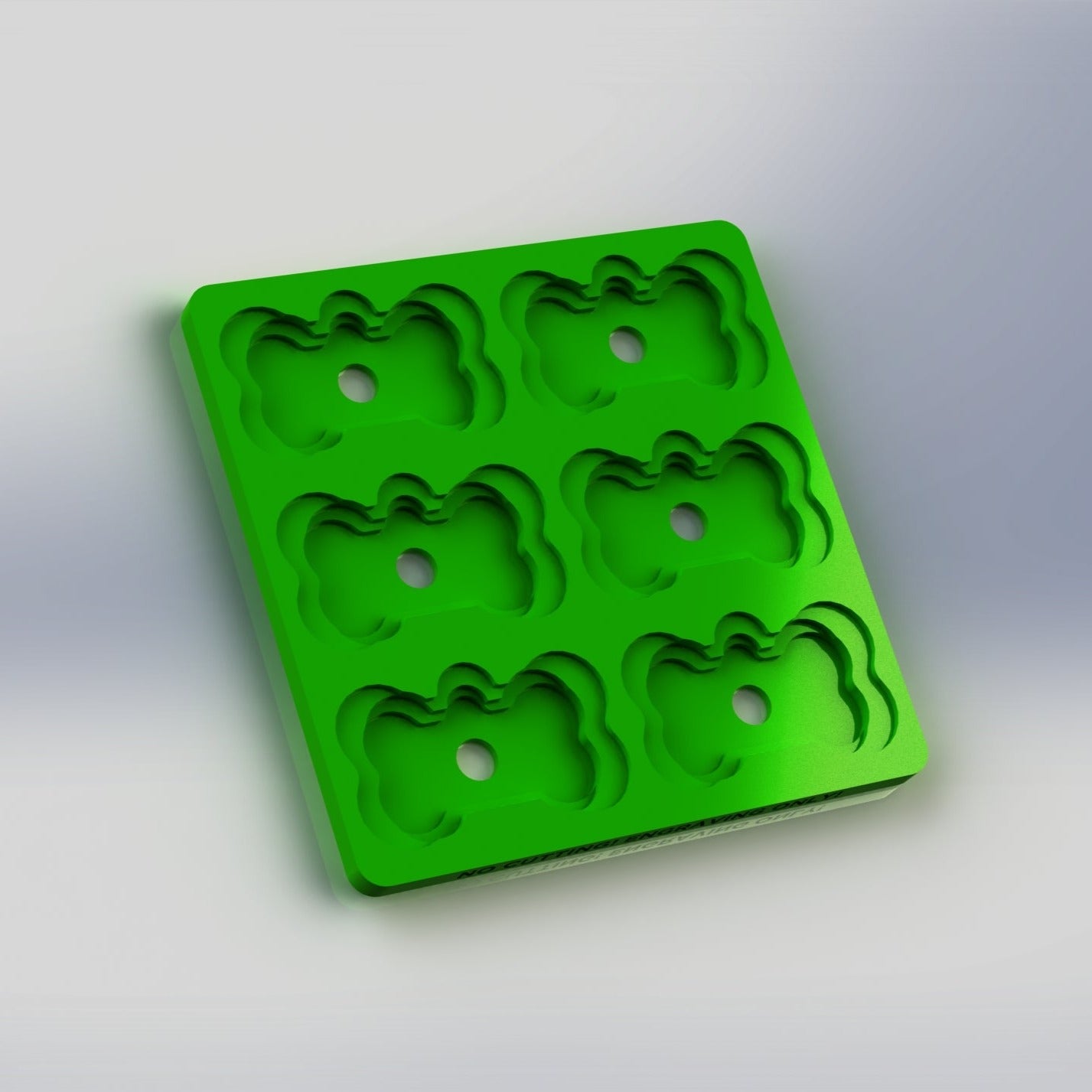

Upgrade your XTool F1 (and S1) laser cutter and engraver with this three size dog bone tag fixture as seen in the video above and increase your production efficiency, accuracy and repeatability.

The XTool F1 is a very versatile and compact laser cutting and engraving machine with both blue diode and IR laser capabilities. Therefore you can process an enormous variety of materials. Therefore it is valuable to be able to quickly and accurately locate many different materials in a variety of shapes and sizes using easily swappable fixtures within the XTool frame.

However, locating the materials in physical space is only half the challenge. This kit also includes the corresponding digital file(s) to load into XTool Creative Space software (or Lightburn). (Be sure to enter your email address on checkout to receive the files!) Then you can overlay your graphics so there is no more guess work when it comes to matching the position of your materials in physical space and in the software workspace.

See the above video for an in-depth explanation of how the fixture system works with the software. It is very quick and easy.

This fixture holds three sizes of dog bone tags for batch processing. The compatible sizes for objects range from 38mm - 50mm. There is a list below for some items in these common sizes:

What is included:

  • Dog Bone Tag Fixture
  • Digital File

These fixtures can be adapted to fit the XTOOL F1 ULTRA with this adapter:

In addition to the XTOOL F1 - these jigs can be used in a similar way with the XTool S1. Although the S1 does not have a pocket for them to sit, they make material alignment very easy with the S1's "two point positioning" system - especially with round or oddly shaped objects.

  1. Place the fixture and your material in the work space. Use the focus probe to touch down on your work piece.
  2. Capture the top left and bottom right corners of these fixtures using the two point positioning.
  3. Import the digital templates into XTool Creative Space. Align the templates with the bounding box created with the two point positioning measurement.
  4. Overlay your design onto the corresponding area of the fixture and set your material parameters.
  5. Process.

If you purchase multiple fixtures you can panelize them in your workspace to batch process materials for efficiency.
