XTool F1 Circle and Hexagon Christmas Ornament Fixture

$17.00
Quantity:

Note: The actual color of the physical parts is FLUORESCENT YELLOW (similar to the website / brand color theme). The colors in the pictures are to make the items more visible in the listing photos.

Scroll to the bottom to see how these are also compatible with the XTool S1 and  F1/F2 ULTRA. Also compatible with Eufymake E1 UV Ink Printer. Video(s) coming soon.

Compatible with 3" Circular and Hexagon Ornaments and 4" Circular Ornaments (links to materials below).

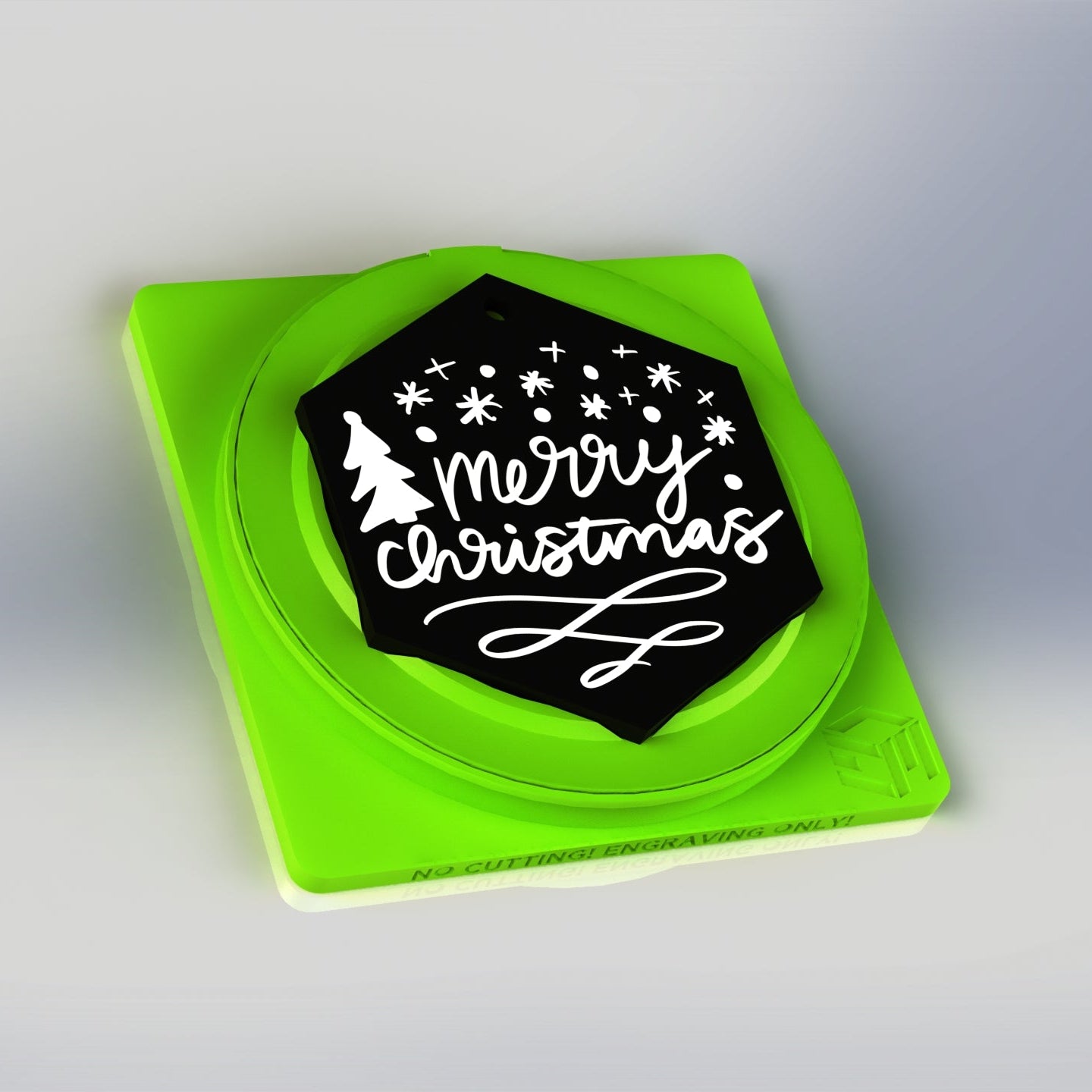

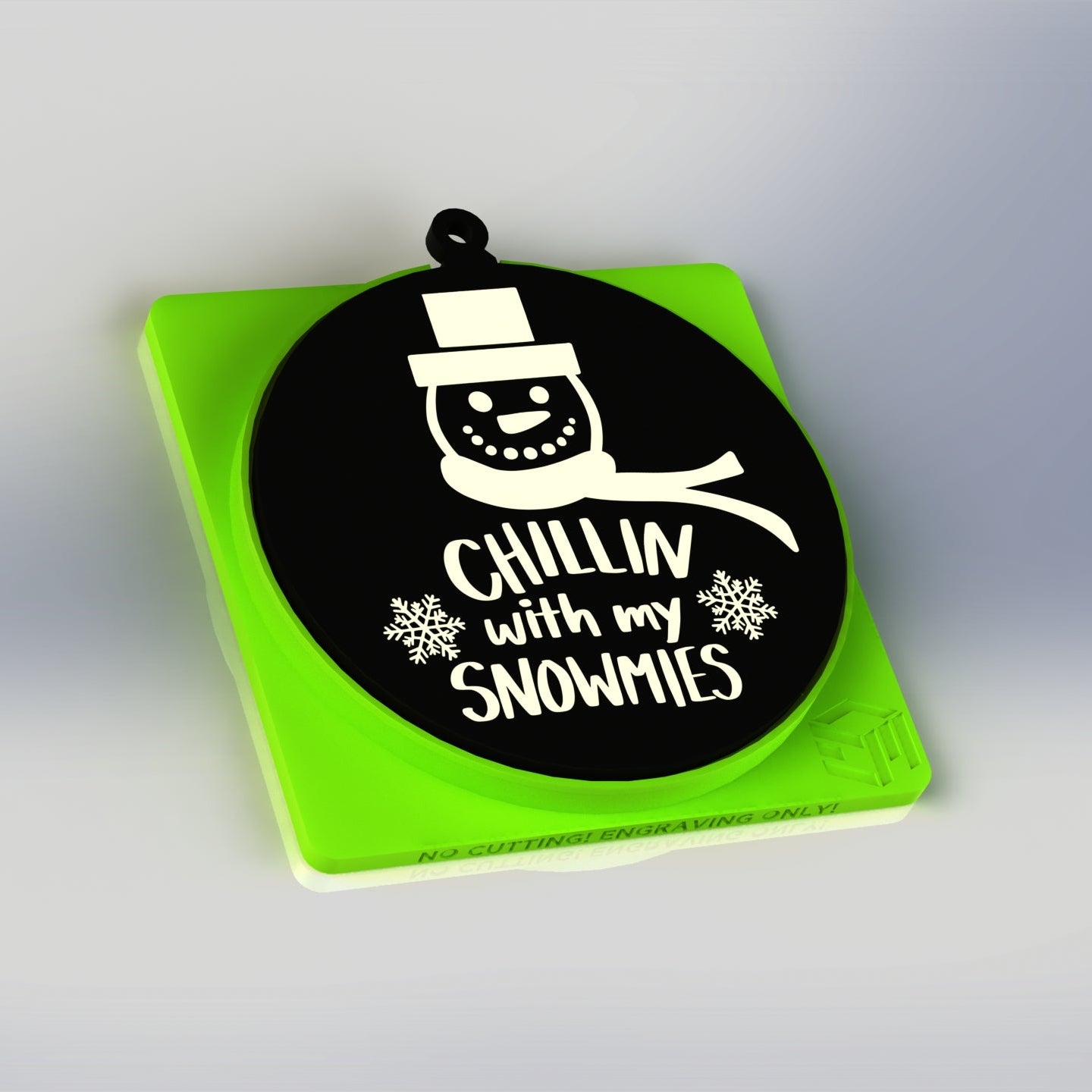

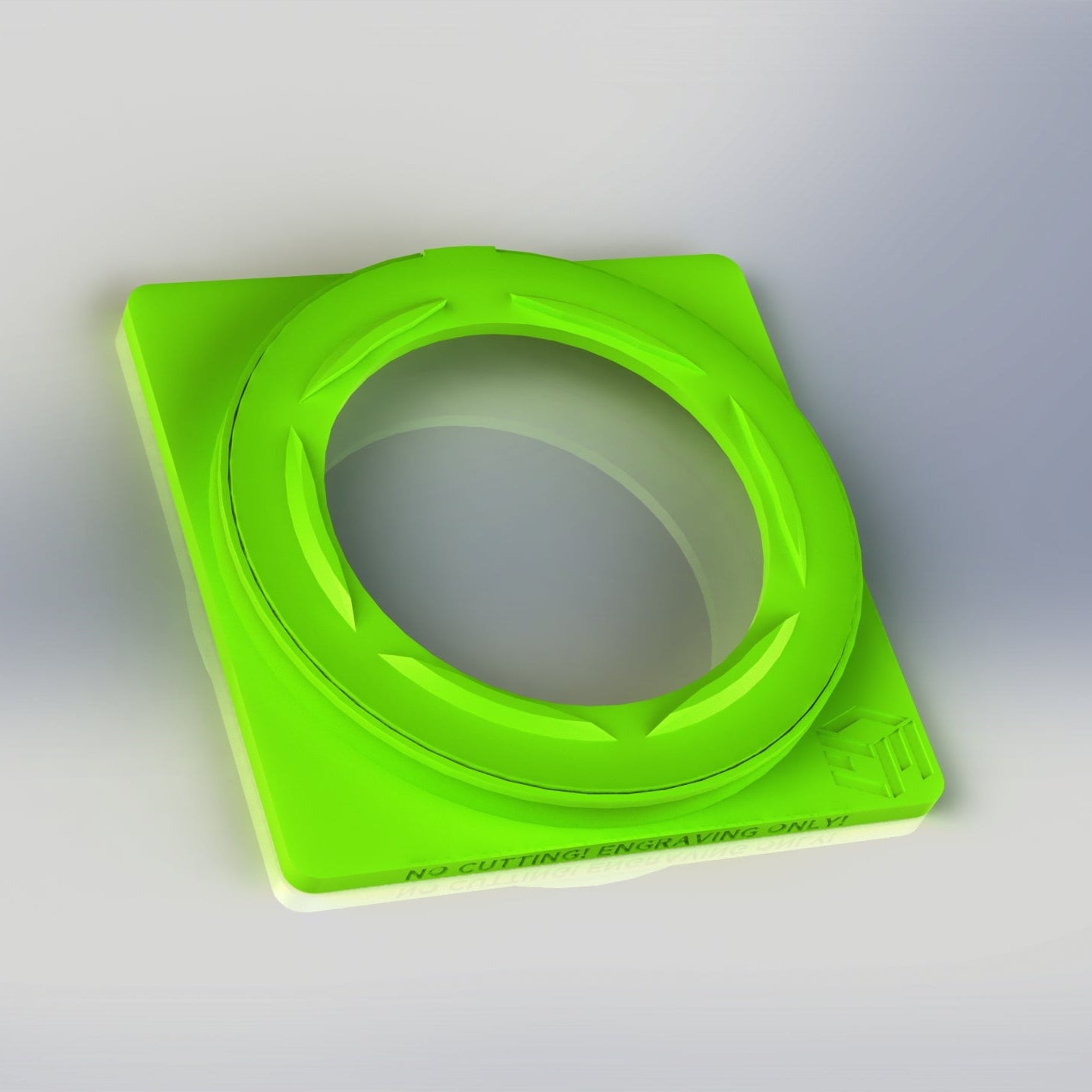

Upgrade your XTool F1 (and S1) laser cutter and engraver with this 3 inch circle and hexagon + 4 inch circle Christmas ornament fixture to increase your production efficiency, accuracy and repeatability. The Christmas ornament is positioned with the stem pointed upwards for consistent results every single time. This fixture also works great with the EufyMake E1 UV Ink Printer.

The XTool F1 is a very versatile and compact laser cutting and engraving machine with both blue diode and IR laser capabilities. Therefore you can process an enormous variety of materials. In this case, many of the available ornaments come in wood which works well with the blue diode laser, or various colors of acrylic which can be marked with the IR laser. Wood, glass, and clear acrylic ornaments can be printed on using the Eufymake E1 UV Ink Printer.

Locating the materials in physical space is only half the challenge. This kit also includes the corresponding digital files to load into XTool Creative Space software (or Lightburn). (Be sure to enter your email address on checkout to receive the files!) Then you can overlay your graphics so there is no more guess work when it comes to matching the position of your materials in physical space and in the software workspace.

See the above video for an in-depth explanation of how the fixture system works with the digital file as a template. It is very quick and easy. The video also contains example settings for best results processing some materials. The latest 'Easy Set Material Library' in XTool Creative Space 2.0 has many great parameters for all xTool machines.

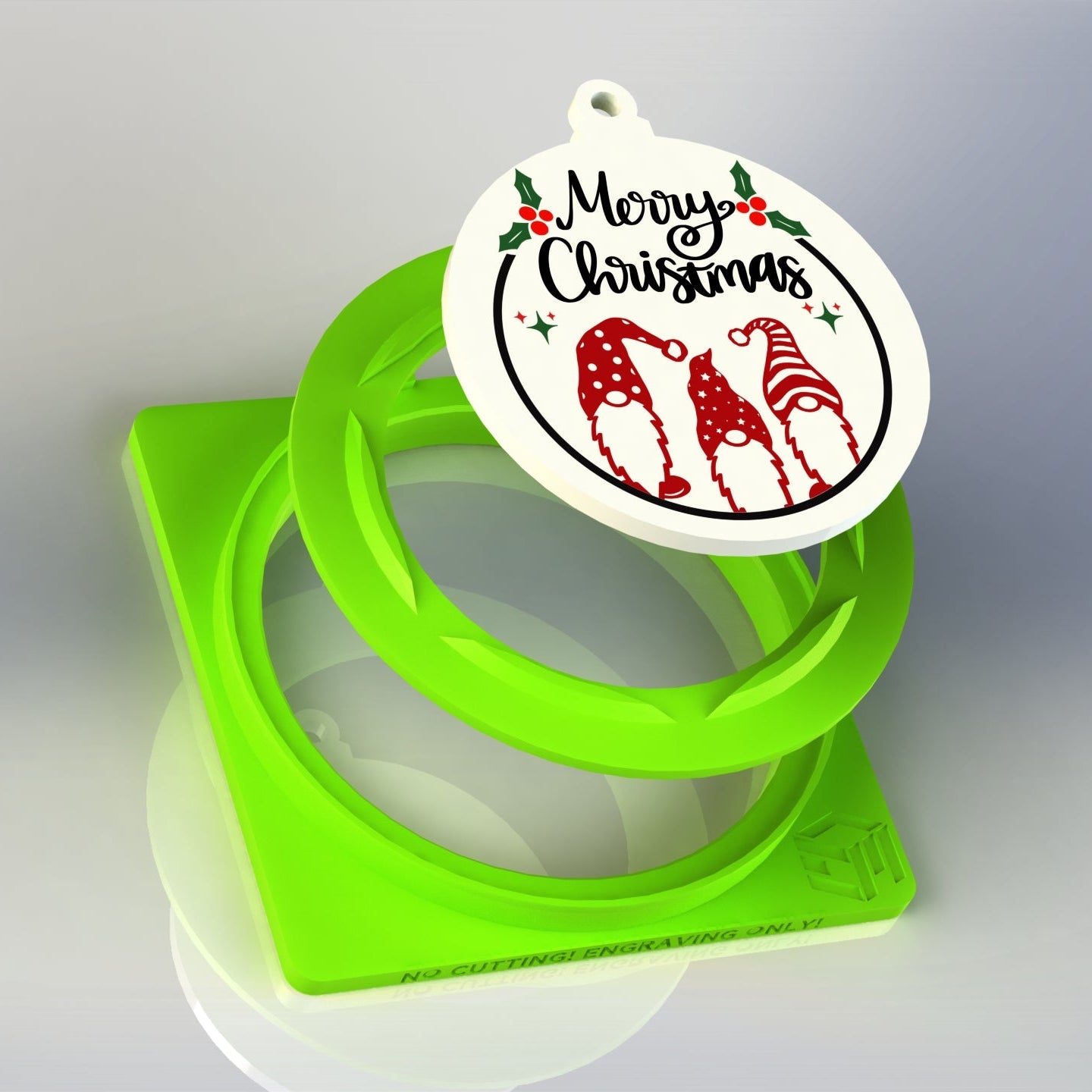

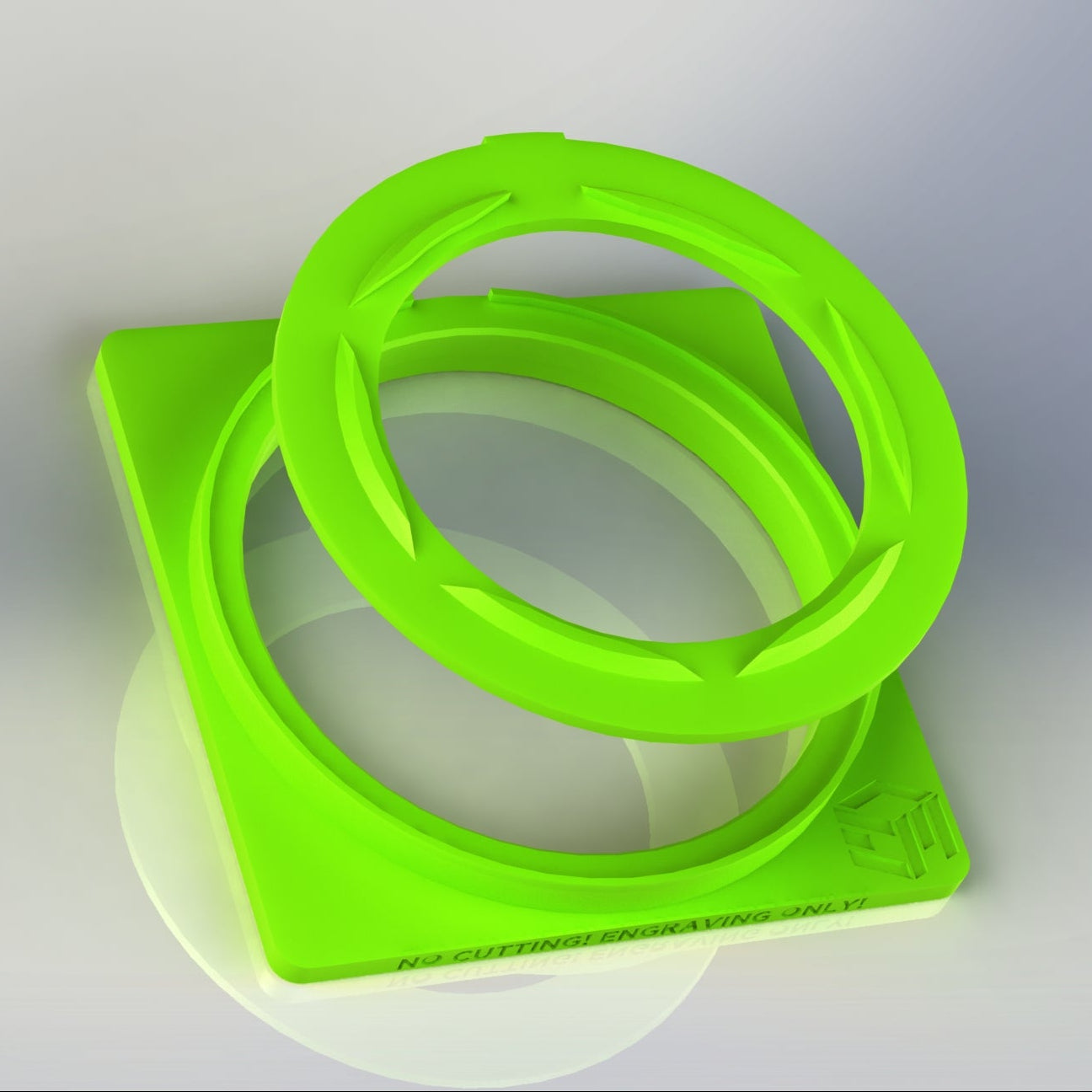

This fixture can hold a 3 inch circle or hexagon, or 4 inch circle ornament for processing. Here are some links to recommended compatible materials:

What is included:

  • Circle and Hexagon Christmas Ornament Fixture
  • Digital File

These fixtures can be adapted to fit the XTOOL F1 ULTRA with this adapter:

In addition to the XTOOL F1 - these jigs can be used in a similar way with the XTool S1 (with riser base). Although the S1 does not have a pocket for them to sit, they make material alignment very easy with the S1's "two point positioning" system - especially with round or oddly shaped objects.

  1. Place the fixture and your material in the work space. Use the focus probe to touch down on your work piece.
  2. Capture the top left and bottom right corners of these fixtures using the two point positioning.
  3. Import the digital templates into XTool Creative Space. Align the templates with the bounding box created with the two point positioning measurement.
  4. Overlay your design onto the corresponding area of the fixture and set your material parameters.
  5. Process.

If you purchase multiple fixtures you can panelize them in your workspace to batch process materials for efficiency.
