XTool F1 / S1 Leather Keychain Fixture (3 Styles) (4 Pack)
XTool F1 / S1 Leather Keychain Fixture (3 Styles) (4 Pack)
XTool F1 / S1 Leather Keychain Fixture (3 Styles) (4 Pack)

Embrace Making

XTool F1 / S1 Leather Keychain Fixture (3 Styles) (4 Pack)

$51.00 $68.00
Save $17.00
Quantity:

These fixtures can be adapted to fit the XTOOL F1 ULTRA one at a time or as a 2x2 grid for maximum efficiency using the adapter below:

Scroll to the bottom to see how these are also compatible with the XTool S1.

Remember not to purchase PVC based fake leather! Vaporizing PVC can be very dangerous. Genuine leather, or PU based faux leather should be used.

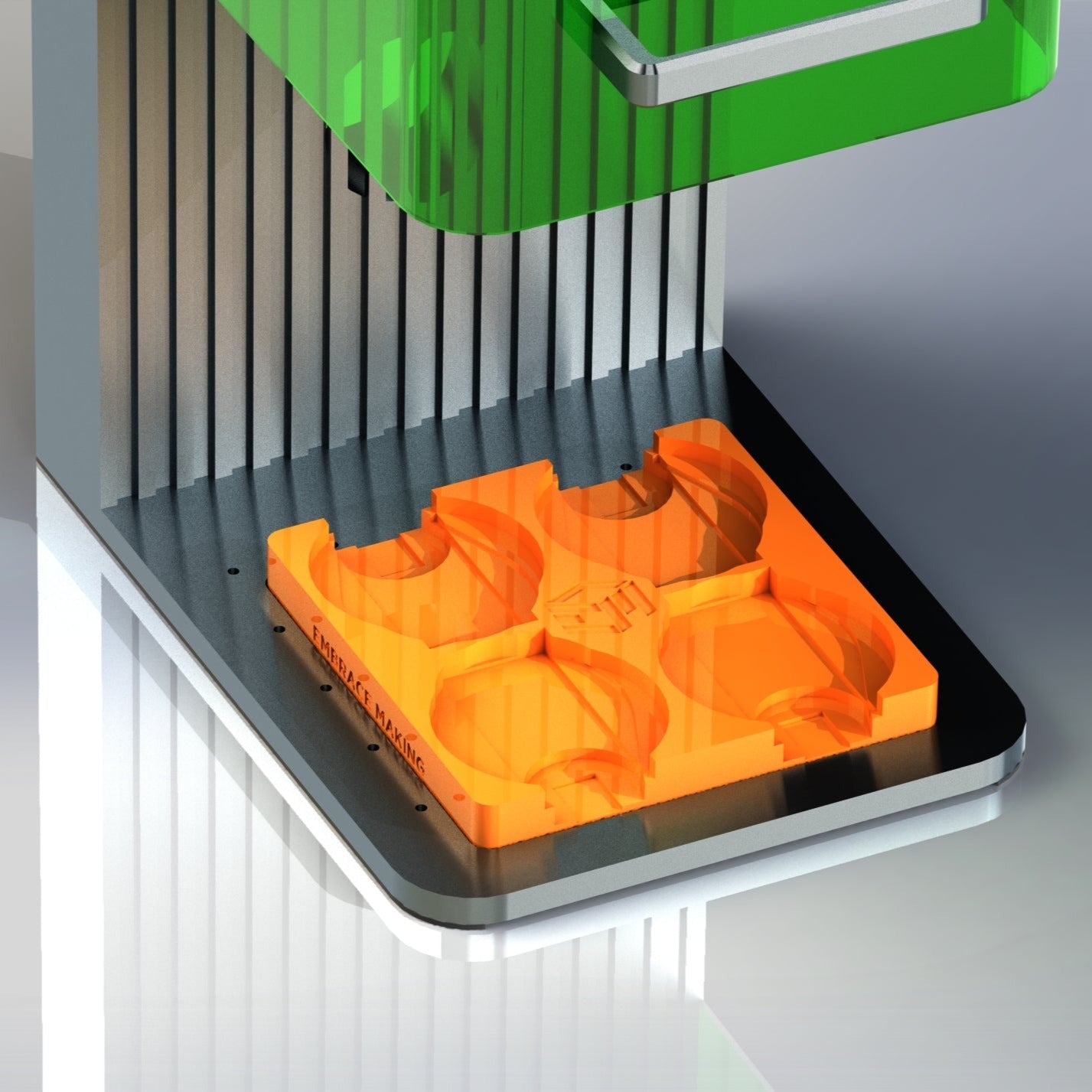

Upgrade your XTool F1 (and S1) laser cutter and engraver with this leather keychain fixture as seen in the video above and increase your production efficiency, accuracy and repeatability.

The XTool F1 is a very versatile and compact laser cutting and engraving machine with both blue diode and IR laser capabilities. Therefore you can process an enormous variety of materials. Therefore it is valuable to be able to quickly and accurately locate many different materials in a variety of shapes and sizes using easily swappable fixtures within the XTool frame.

However, locating the materials in physical space is only half the challenge. This kit also includes the corresponding digital files to load into XTool Creative Space software (or Lightburn). (Be sure to enter your email address on checkout to receive the files!) Then you can overlay your graphics so there is no more guess work when it comes to matching the position of your materials in physical space and in the software workspace.

See the above video for an in-depth explanation of how the fixture system works with the digital file and depth calculation. It is very quick and easy. The video also contains example settings for best results processing some materials. The latest 'Easy Set Material Library' in XTool Creative Space 2.0 has many compatible leather settings for all XTool machines.

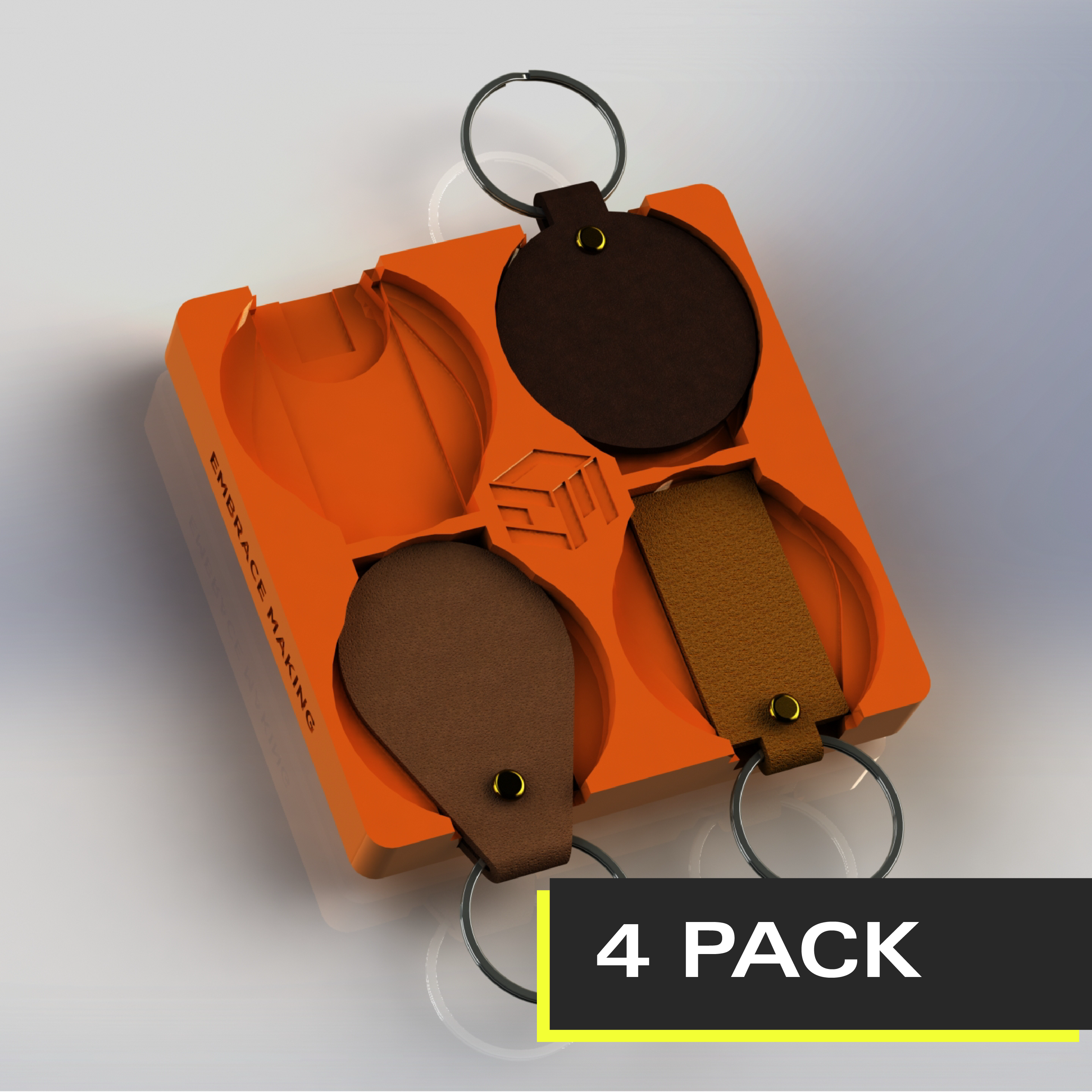

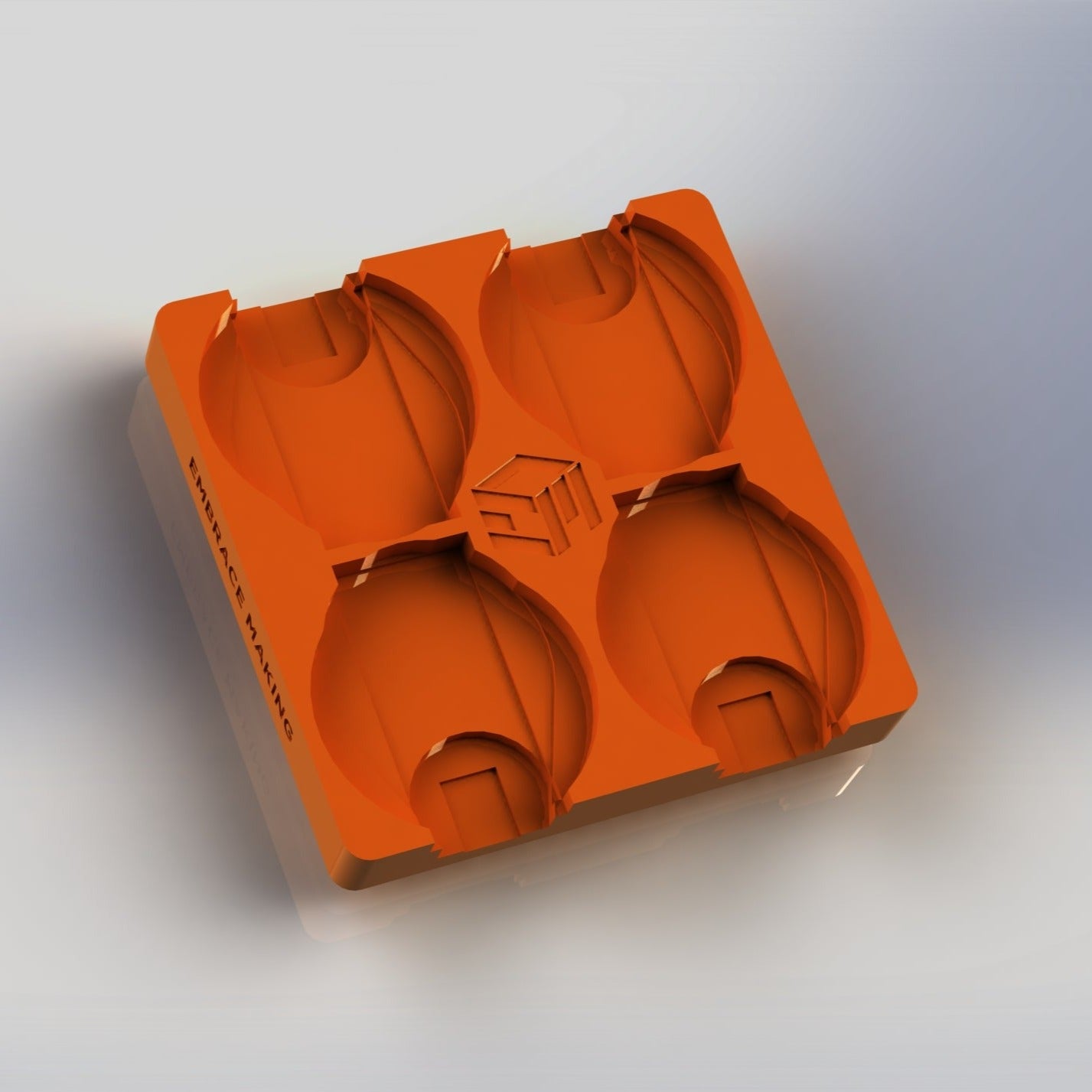

This fixture holds 3 styles of leather keychains for batch processing. Note that you should use only one style at a time while processing so all materials are at the same focusing height and the same color of the leather / fake leather ensures consistent results. Here is a link to the example of the popular keychains that are compatible with this fixture.

What is included:

  • Leather Keychain Fixture (QTY: 4)
  • Digital Files

These fixtures can be adapted to fit the XTOOL F1 ULTRA. This 4 pack allows you to create a 2x2 grid on the F1 ULTRA for maximum efficiency using the adapter below:

In addition to the XTOOL F1 - these jigs can be used in a similar way with the XTool S1. Although the S1 does not have a pocket for them to sit, they make material alignment very easy with the S1's "two point positioning" system - especially with round or oddly shaped objects.

  1. Place the fixture and your material in the work space. Use the focus probe to touch down on your work piece.
  2. Capture the top left and bottom right corners of these fixtures using the two point positioning.
  3. Import the digital templates into XTool Creative Space. Align the templates with the bounding box created with the two point positioning measurement.
  4. Overlay your design onto the corresponding area of the fixture and set your material parameters.
  5. Process.

If you purchase multiple fixtures you can panelize them in your workspace to batch process materials for efficiency.
