This product has been updated to be able to mount on the inside of the frame as well as on the outside. Below are the video instructions to mount to the inside of the frame (to avoid obstructing the XTOOL enclosure):
Below are the original instructions (still applicable) to mount to the outside of the front frame:
Note: If you purchased the first version of the switch and would like to get the updated housing, please contact me through the contact form on this website. We can work something out to get you the updated housing that can be mounted on the inside of the frame.

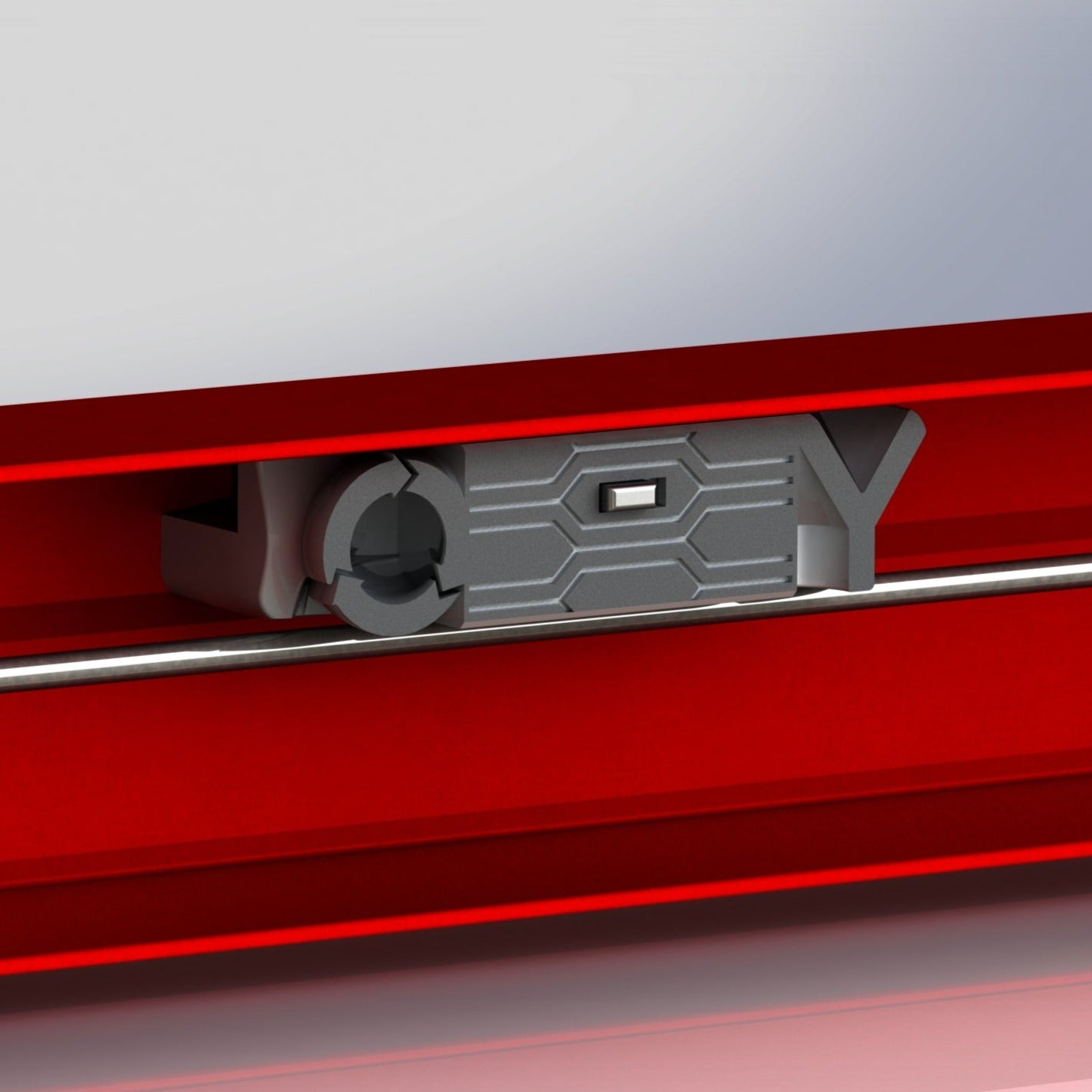

Upgrade your XTool RA2 Pro rotary attachment with this switch that allows you to easily change between rotary and regular y-axis functions. Normally you would have to connect/disconnect the cables from the rotary and mainboard which eventually leads to the small connectors and wires breaking. It is still recommended to power off your machine while switching between the Y motor functions as a precaution to protect the stepper motor drivers on the main control board.
With the RA2 switch you can leave the cables plugged in and simply place your RA2 attachment to the side when not in use. You no longer have to be concerned with fatiguing the small connectors and cables.
The XTOOL RA2 Pro is a very versatile rotary attachment that is compatible with more than just the XTOOL cutters and engravers. Therefore this switch can be used on various other laser cutters and engravers with the correct connectors.
This kit comes with the connector required for the XTool D1 Pro and is compatible with the various 10W/20W/40W mainboards.
The assembly easily mounts to the front or inside of the front frame of the Xtool D1 Pro frame with included high strength mounting tape and double sided adhesive velcro.
Note that the parts you receive will be BLACK. The colors in the pictures are used to make the items more visible in the listing photos.
What is included:
- RA2 / Y-Axis Switch
- XTool D1 Pro Wire Connector
- Mounting Tape / Adhesive Velcro
What is not included:
- Accessory Snap Latch Box: Click here
-
XTool RA2 Tilt Mechanism: Click here
- XTool RA2 PRO: Click here
