Creality Ender 7 Bondtech LGX Lite + Mosquito Magnum Hot End Kit
Choose options
THIS IS NOW A DIGITAL DOWNLOAD. YOU WILL RECEIVE THE STL FILES ALONG WITH A BILL OF MATERIALS AND LINKS TO SUGGESTED SOURCES FOR THE HARDWARE AND PARTS.
PLEASE NOTE: Recently BondTech has released the LGX Lite V2. Unfortunately they removed the ability to mount the LGX lite with a "sandwich" plate like this kit uses. To use this kit you will need to buy the V1 extruder that has the removable plate between the extruder and the motor.
The Creality Ender 7 3D printer is a platform that has a lot of potential. However, there are a few design elements of the printer that could use some improvements to allow the printer to realize its full potential as a high speed machine.
The Creality hot end is advertised as a higher capacity / higher flow unit - and this may be true compared to an Ender 3 - but this hot end cannot compare to aftermarket upgrades such as the Slice Engineering Mosquito Magnum.
Based on my volumetric flow rate tests and my practical experience with this machine, 15mm^3/s is the higher end of the max flow rate for the Ender 7. For comparison, the Mosquito Magnum can deliver more than 30mm^3/s !
Therefore if you want to get the most out of your Ender 7 and run higher print speeds or larger nozzles, the investment into a higher flow hot end will easily pay for itself in time saved.
The transition from Bowden tube to direct drive (Bondtech LGX Lite) will also increase your filament control by eliminating the 'spring' inherent with a Bowden tube setup. I have noticed much less stringing and oozing when printing in PETG.

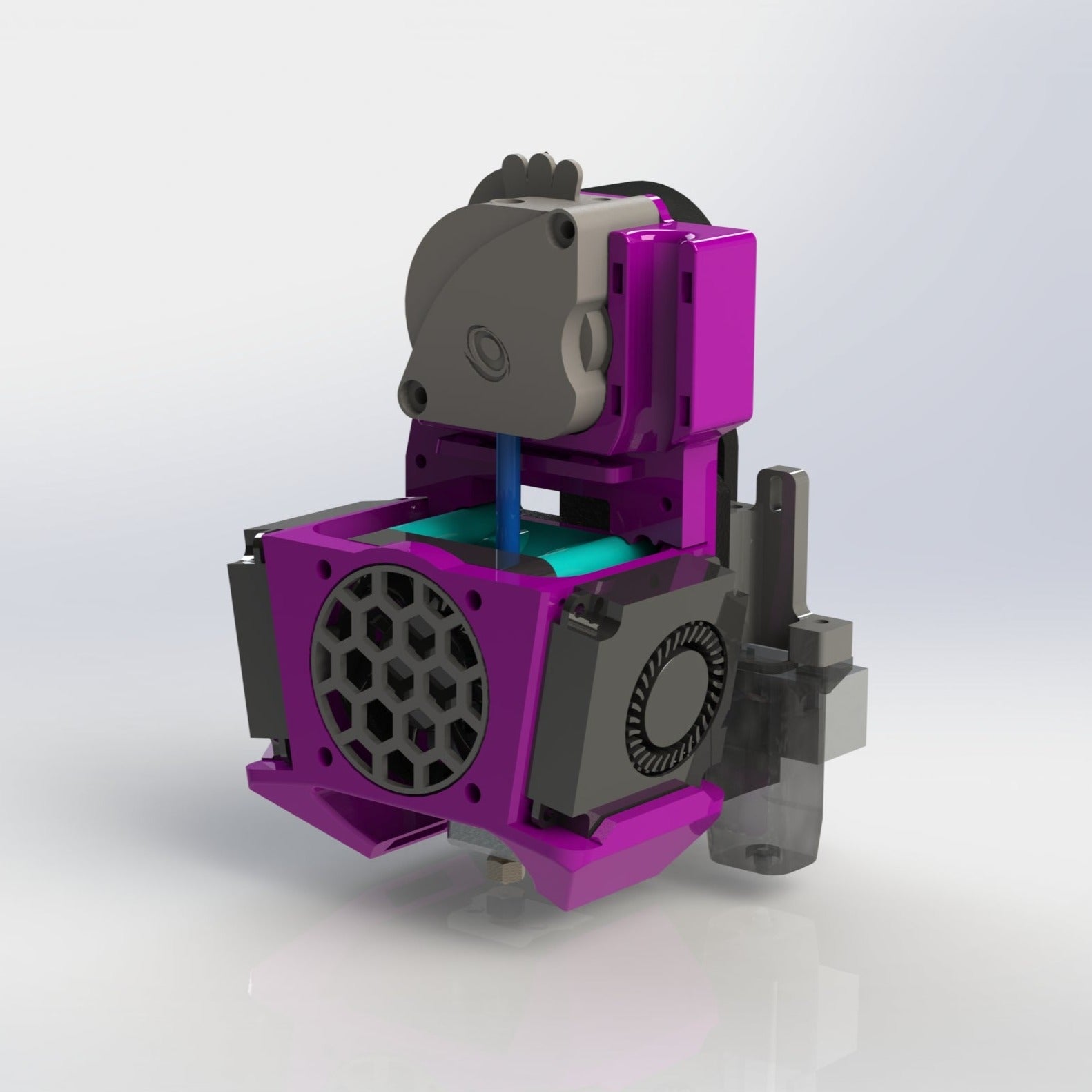

This upgrade kit includes all of the 3D printed part files necessary to fit the Bondtech LGX lite and Slice Engineering Mosquito Magnum hot end. Suggested to print in carbon fiber PETG material.

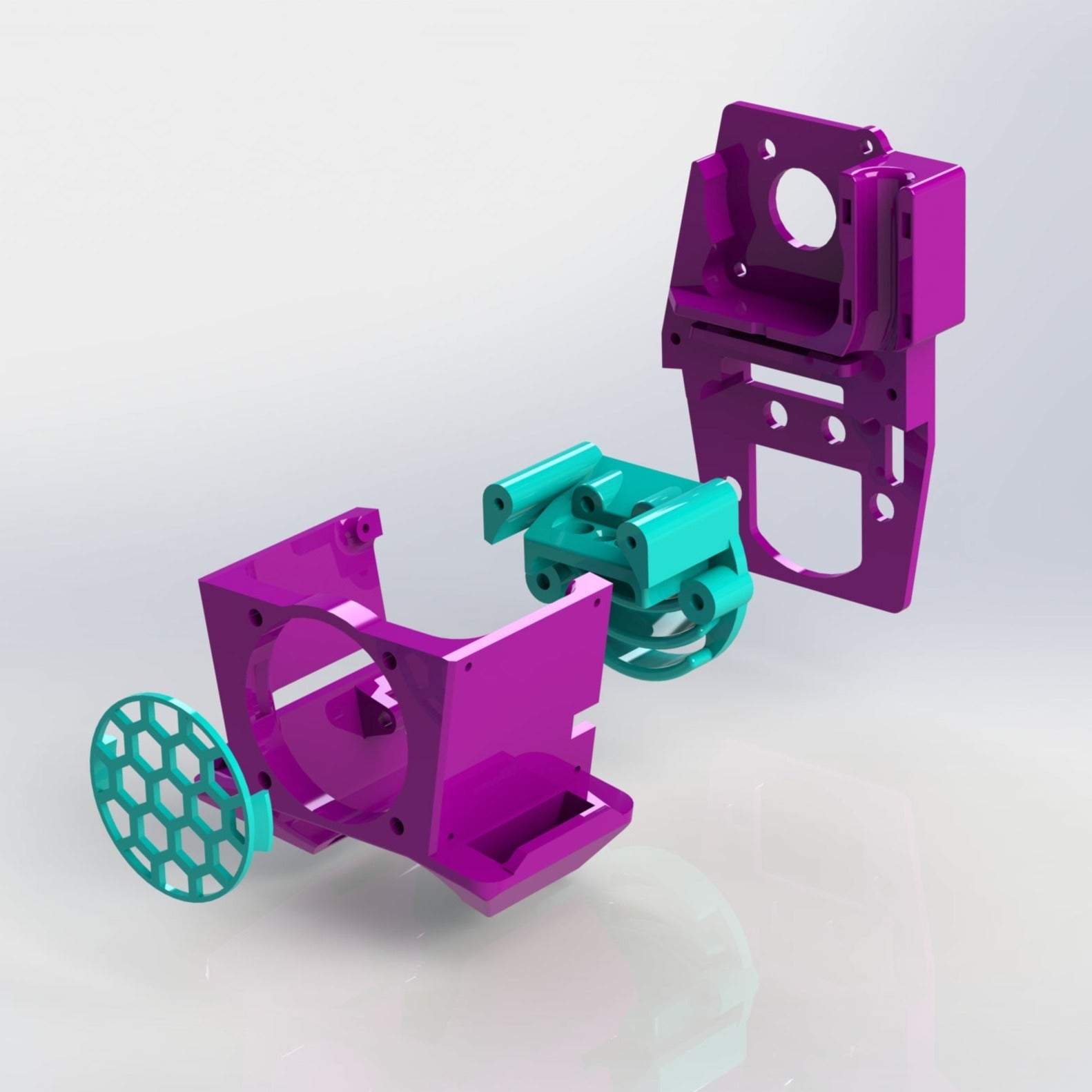

What is included in the kit (digital downloads):
- LGX Lite Mount
- Mosquito Magnum Mount
- Fan Guard
- Part Cooling Fan Shroud
- Hardware Bill of Materials
- Installation Drawing
Get discounts on the Mosquito Magnum using my referral link or code CHRIC5
Prefer to buy on Amazon? As an Amazon associate I may earn a small commission (at no extra cost to you):
Creality has apparently removed the BLtouch / CRtouch firmware from their website. You can download it directly from me here: Ender 7 ABL Firmware
BY PURCHASING THIS LISTING, YOU AGREE NOT TO DISTRIBUTE OR SHARE THE FILES AND DESIGN IN THEIR ORIGINAL FORM OR AS THE BASIS OF A 'REMIX' OR MODIFIED DESIGN IN WHOLE OR IN PART.
