Creality Ender 7 Bondtech LGX Lite + Creality Spider PRO Hot End Kit
Choose options
THIS IS NOW A DIGITAL DOWNLOAD. YOU WILL RECEIVE THE STL FILES ALONG WITH A BILL OF MATERIALS AND LINKS TO SUGGESTED SOURCES FOR THE HARDWARE AND PARTS.
PLEASE NOTE: Recently BondTech has released the LGX Lite V2. Unfortunately they removed the ability to mount the LGX lite with a "sandwich" plate like this kit uses. To use this kit you will need to buy the V1 extruder that has the removable plate between the extruder and the motor.
The video above was created for the Mosquito Magnum hot end. The Creality Spider PRO kit was derived from the Mosquito Magnum kit and therefore the installation is nearly identical with the exception of 2 screws. An installation drawing is included with every kit showing the 2 different screws and their location.

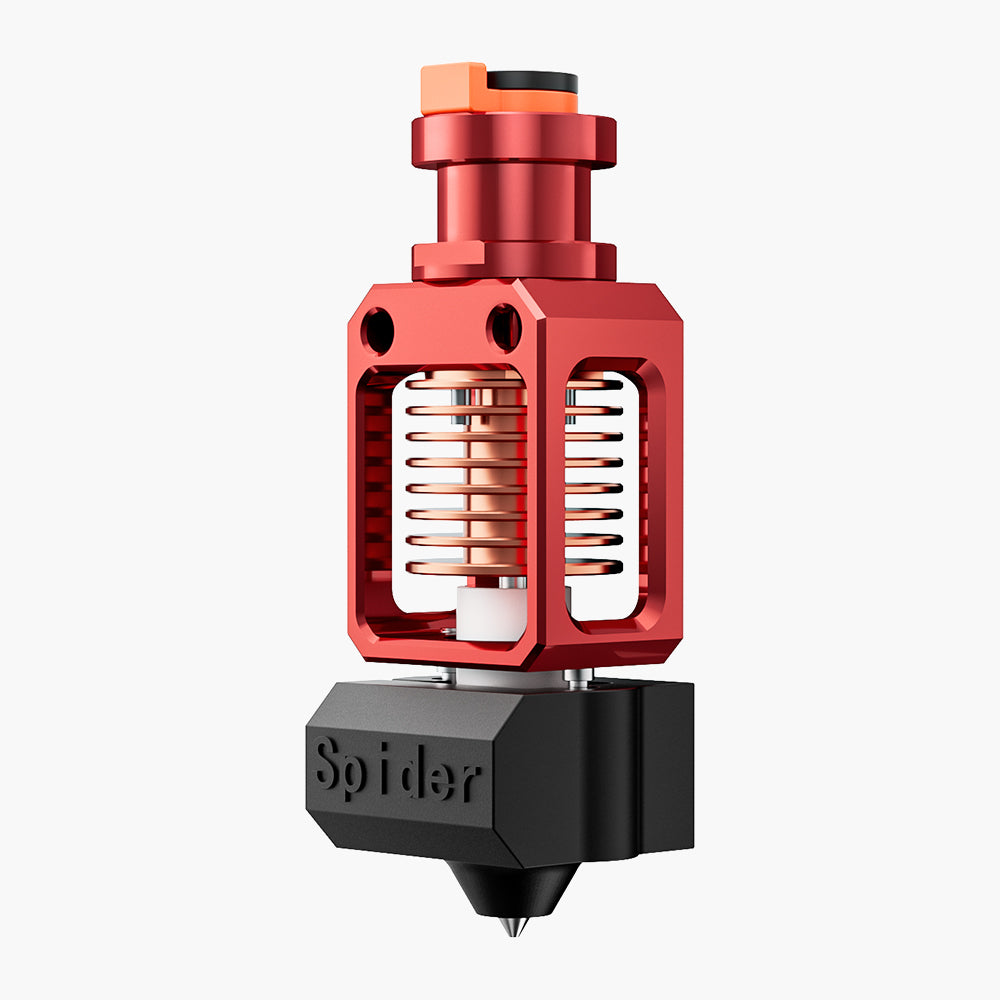

This version of the Spider kit is for the PRO. See the third image in the image gallery to see which Spider hotend this kit is compatible with. Creality also has the Spider original hotend with slightly different dimensions. There is a different kit for the original version available for the Ender 7. Click here for the original version.
The Creality Ender 7 3D printer is a platform that has a lot of potential. However, there are a few design elements of the printer that could use some improvements to allow the printer to realize its full potential as a high speed machine.
The Ender 7 hot end is advertised as a higher capacity / higher flow unit - and this may be true compared to an Ender 3 - but there is still room for improvement. This is why Creality has released the "Spider" PRO hot end.
Various tests online suggest this hot end can support a volumetric flow rate of nearly 24mm^3/s. While this is not quite the 30mm^3/s that I was able to achieve with the Mosquito Magnum, it is a very respectable flow rate considering the Mosquito Magnum hot end costs more than 3x more. Additionally, with the PRO version you can run high temperature filaments. However, keep in mind that without modifying your firmware you will not be able to reach temperatures above 260C.
Therefore if you want to get the most out of your Ender 7 on a budget and run higher print speeds or larger nozzles, the investment into a higher flow hot end will easily pay for itself in time saved.
The transition from Bowden tube to direct drive (Bondtech LGX Lite) will also increase your filament control by eliminating the 'spring' inherent with a Bowden tube setup. I have noticed much less stringing and oozing when printing in PETG.

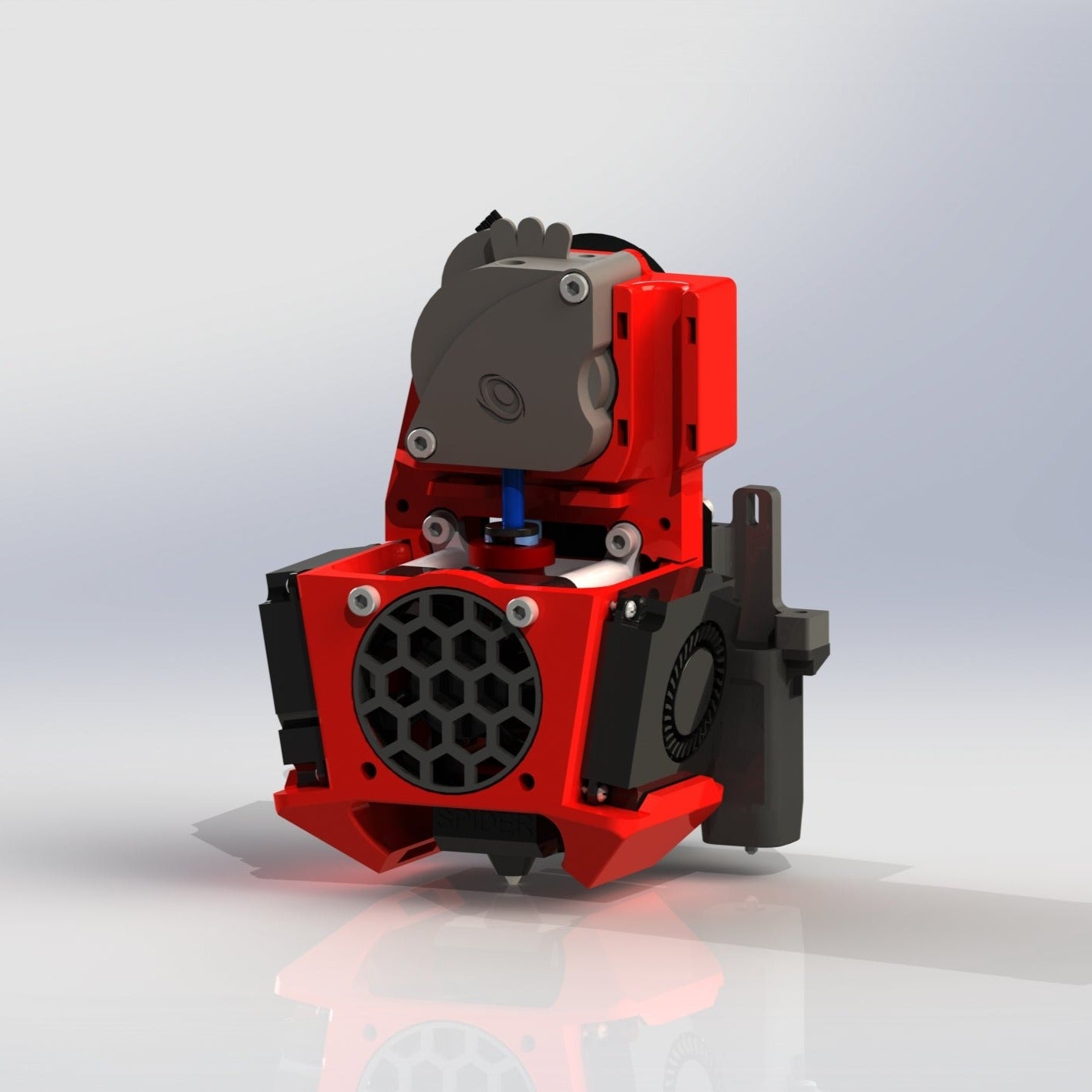

This upgrade kit includes all of the 3D printed part files necessary to fit the Bondtech LGX lite and Creality Spider PRO hot end. Suggested to print parts in black carbon fiber PETG material.

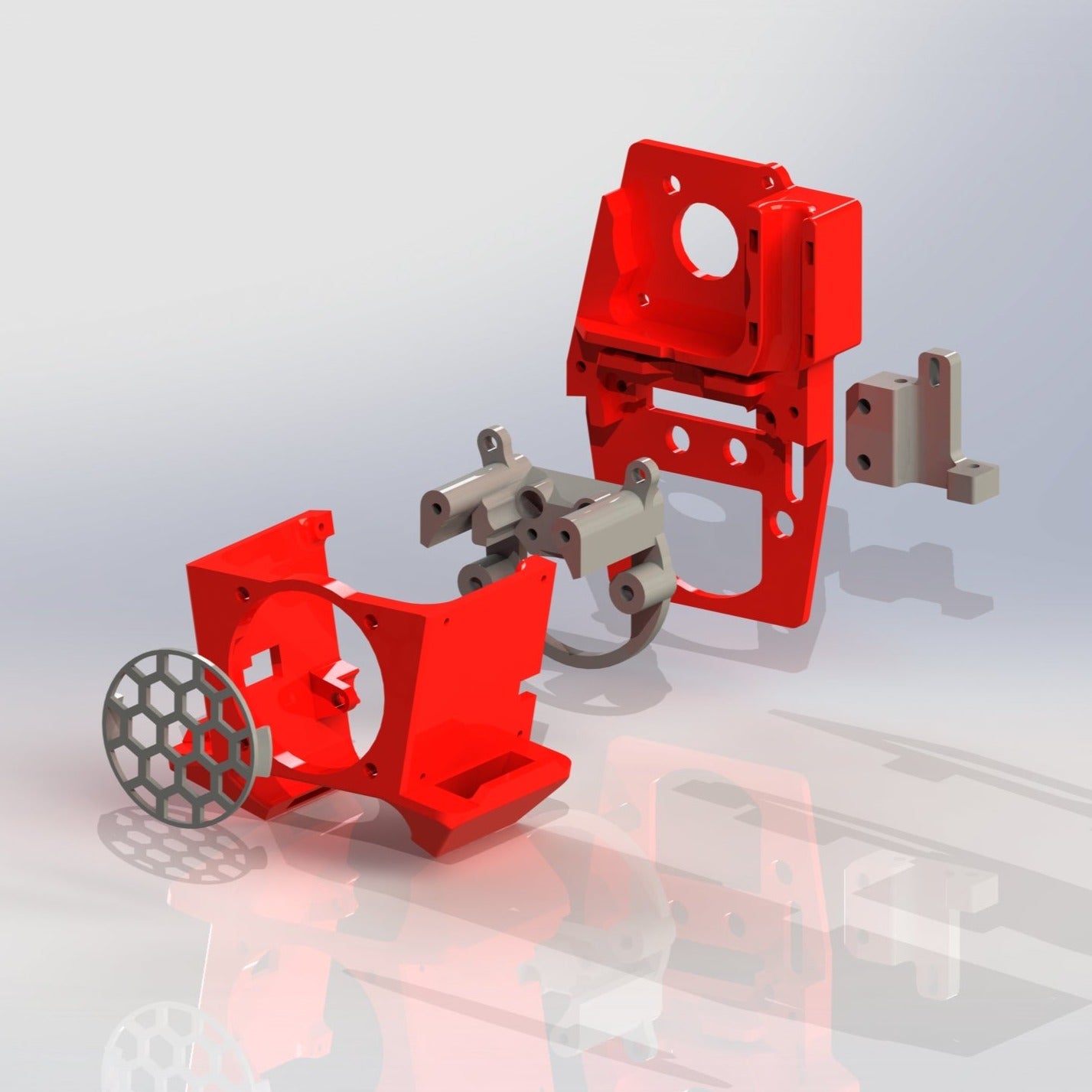

What is included in the kit (digital downloads)
- LGX Lite Mount
- Creality Spider PRO Mount
- Fan Guard
- Part Cooling Fan Shroud
- CR Touch Bracket
- Hardware Bill of Materials
- Installation Drawing
If you need the Creality Spider PRO hot end it can be found at the link below. As an Amazon affiliate I may earn a small commission (at no extra cost to you):
Creality has apparently removed the BLtouch / CRtouch firmware from their website. You can download it directly from me here: Ender 7 ABL Firmware
BY PURCHASING THIS LISTING, YOU AGREE NOT TO DISTRIBUTE OR SHARE THE FILES AND DESIGN IN THEIR ORIGINAL FORM OR AS THE BASIS OF A 'REMIX' OR MODIFIED DESIGN IN WHOLE OR IN PART.
